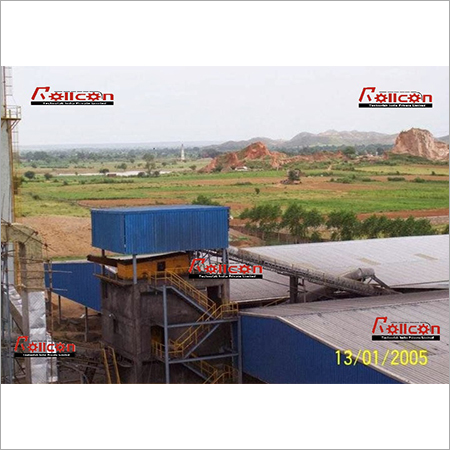

Coal Handling Plant

Coal Handling Plant
Coal Handling Plant
Send Inquiry
Product Code : CHS-01
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price Range
  • 300000.00 - 500000.00 INR
Product Specifications
  • Size
  • 500 to 1200 Mm
  • Width
  • 400 Millimeter (mm)
  • Height
  • 20-25 , 25-30 Perch
  • Color
  • Blue
  • Condition
  • New
  • Power Source
  • Electric
  • Voltage
  • 220-380 Volt (v)
  • Warranty
  • No
Product Description
All power plants that are driven by coal derives coal from mine, which is supplied to them by large trucks or through rail. ROM or run of mine hopper deposits the coal received. The coal is then crushed into the hopper and transported to the coal preservation building, where coals from different mines are blended for making it suitable for burning. Coal blocks sourced from mines are washed and crushed as per the grades in the coal handling system. Our coal handling plant can eliminate dust and waste material to improve the coal utility and its market value. This coal handling plant is based on several processing techniques and which are as follows:

  •     Sampling of coal
  •     Washing of sampled coal
  •     Crushing
  •     Screening
  •     Adopting of gravity separation process
  •     De-watering

The coal procured from the coal storage building is crushed again and the crushed coal is transported to smaller coal storage bunkers in the power plants. The coal from the coal storage bunkers is fed into pulverizers where the coal is grinded into fine powder. The fine coal powder is used for burning purpose in the boiler.

Our designed and developed coal handling plant can operate uninterruptedly and perform efficiently for all its life. The parts of this plant, like screens, crushers and feeders are developed in our production unit, so that we can guarantee the functional efficiency of our Coal Handling Plant.


Features

  • Essential processing arrangement of run-of-mine coal
  • Delivers coal of superior grade
  • Maintenance of plant is convenient
  • The functional efficiency is high
  • It resists rust


Specification of coal handling plant

  • It forms an essential part in coal mines and thermal power plant
  • It can be availed in brand new condition
  • Customers have a choice of selecting apt plant from its different models


Our company can also provide turnkey solutions for civil and structural work for the comprehensive Coal Handling Plant, which comprises transfer towers, crusher house, track hopper or wagon tippler hopper, ground hoppers and structural supports. Our company can also provide different components as per the application in coal handling systems, such as:

  • crushers
  • gates and diverters
  • magnets
  • ring granulators or impact crusher
  • roll crushers
  • ash conveying systems
  • belt conveyors
  • bucket elevators
  • chain conveyors
  • screw conveyors
  • spares
  • switches
  • vibrating screens
  • weighing

Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 30 Days
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
